Hi,
I’m Federico Nola, PhD student from Italy.
I’m learning how to use MUSES CE to perform simulations for my PhD thesis. The problem is that I’m probably not understanding how to run correctly Crust DFT module with Lepton module, and so also with the others.
I already read the documentation multiple times, but maybe I missed something.
If anyone will help me, I’ll be extremely thankful.
FN
Hi Federico,
Did you check out this tutorial? Example 3 has a configuration for the Crust-DFT → Lepton workflow that might be what you need.
Or are you trying to use the Gooey? There you will need to connect the input files, so checking out the full tutorial beforehand might be useful.
We also have a few example Jupyter notebooks. You can check them out here.
I’d love to help, but could you share a bit more on which step you are getting stuck on? That’ll make it easier for us to answer.
Thank you for replying.
I’m using the Gooey. I already read pretty much everything, trying to follow the tutorials.
I have two problems:
Also, I tried to use Gooey to generate a NS model with Chiral (+ lepton) and CMB (+ lepton), but the synthesis module (connected well) is always giving me problems.
Thank you again for helping me.
Federico,
For crust-DFT, in the Connect modules section, select Uploads, and click on Select an upload - you’ll see a list of files, and some of them have a path/public_data/eos_tables/du21/*. Most of these are inputs for crust-DFT with different EOSs. Try out the ones starting with large_mmax or fid.
To connect with Lepton, add the crust-DFT module, and then on Connect modules, select the only Crust-DFT output you’ll see for the Lepton input_eos.

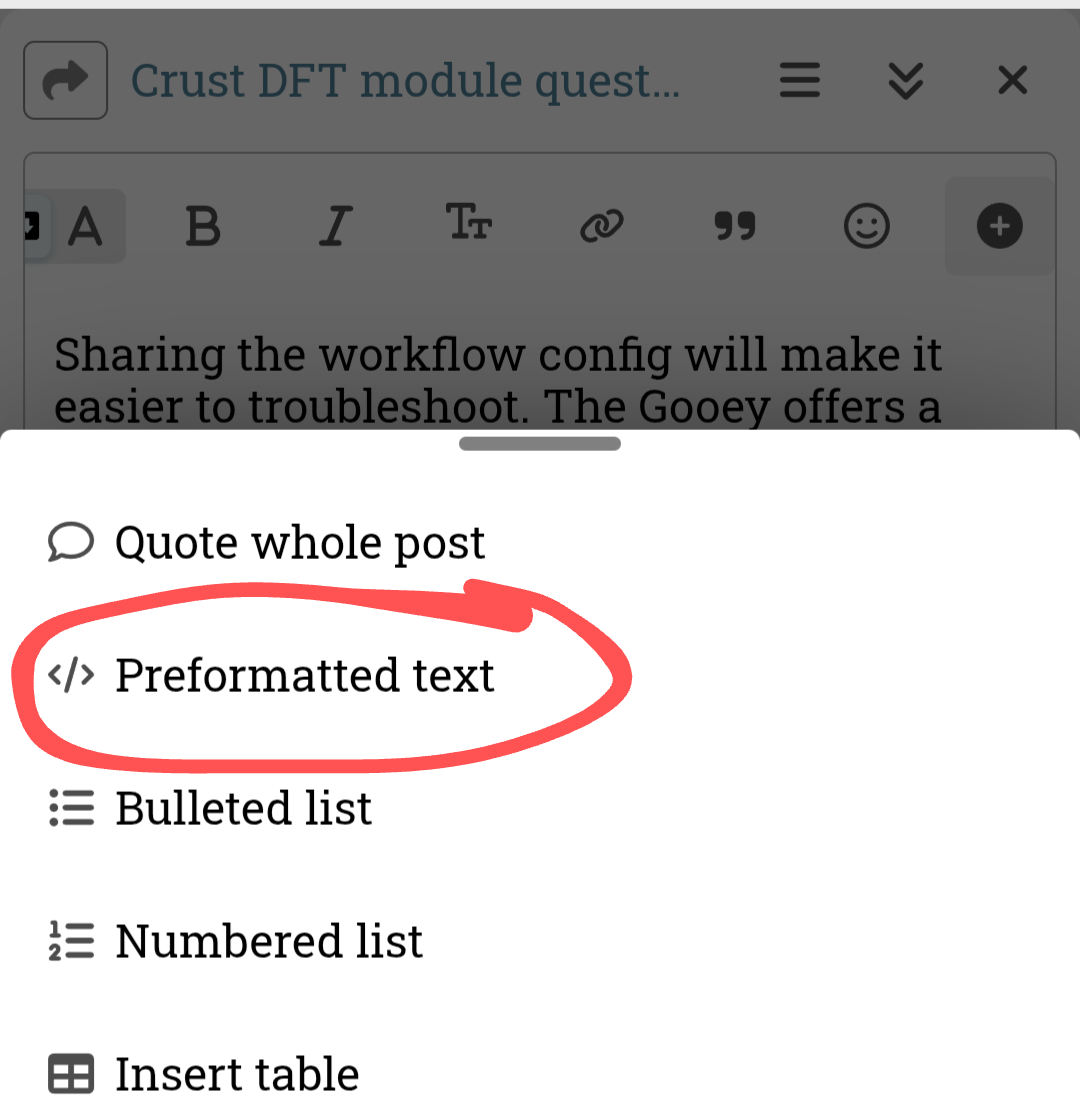

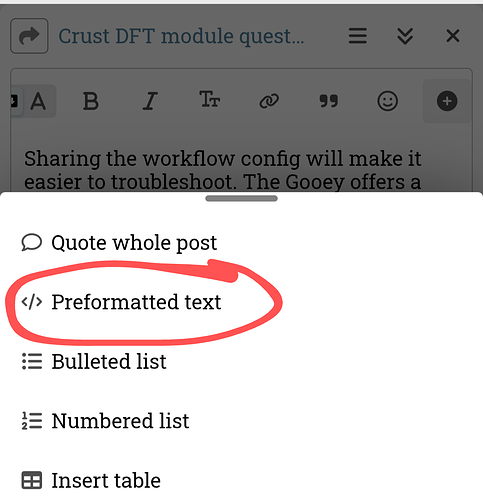

For us to help with Synthesis, please follow Andrew’s advice and paste the config you used.
processes:
- name: chiral_eft-1
config:
eos_grid:
density_end: 0.32
density_step: 0.032
density_start: 0.032
isospin_asymmetry_end: 1
isospin_asymmetry_step: 1
isospin_asymmetry_start: 0
run_name: Test 1 - 450
output_options:
output_format: csv
output_precision: 12
include_output_flavor: true
include_output_lepton: true
include_output_stable: true
include_output_saturation_properties: false
calculation_options:
n_threads: 8
use_multithreading: false
use_first_order_eos: true
use_second_order_eos: true
use_three_nucleon_forces: true
use_free_energy_ansatz_fit: true
use_first_order_self_energy: true
use_quadratic_asymmetry_expansion: false
physical_parameters:
gA: 1.29
fpi: 92.4
alpha: 0.0072967957
gamma: 0
hbarc: 197.327
proton_mass: 938.272
neutron_mass: 939.5653
average_pion_mass: 138.039
charged_pion_mass: 139.5702
neutral_pion_mass: 134.9766
average_nucleon_mass: 938.9182
chiraleft_parameters:
c_lecs:
c_1: -0.81
c_2: 3.28
c_3: -3.4
c_4: 3.4
d_lecs:
d_3: -3.27
d_5: 0.45
d_12: 3.06
d_1415: -5.65
contact_lsj: true
contacts_LO:
contact_LO_nn_1: -0.1548085
contact_LO_nn_2: 0
contact_LO_np_1: -0.15524
contact_LO_np_2: -0.142925
contact_LO_pp_1: -0.15445
contact_LO_pp_2: 0
contacts_NLO:
contact_NLO_1: 2.15
contact_NLO_2: 1.24
contact_NLO_3: 0.25
contact_NLO_4: -0.688
contact_NLO_5: 0.61
contact_NLO_6: 0.57
contact_NLO_7: -0.6425
contacts_N3LO:
contact_N3LO_1: -4.25
contact_N3LO_2: -16.4
contact_N3LO_3: 0.1
contact_N3LO_4: 2.1
contact_N3LO_5: 3.65
contact_N3LO_6: 12
contact_N3LO_7: 1.55
contact_N3LO_8: -0.8
contact_N3LO_9: 2.65
contact_N3LO_10: 4.63
contact_N3LO_11: -2.42
contact_N3LO_12: -0.37
contact_N3LO_13: 1.892
contact_N3LO_14: -0.61
contact_N3LO_15: 5.76
cutoff_exponent: 3
cutoff_scale_MeV: 450
cutoff_exponent_LO: 4
fitted_parameter_set: none
three_nucleon_forces:
c_D: -0.24
c_E: -0.106
cutoff_scale_MeV: 700
module: chiral_eft
- name: lepton-1
pipes:
input_eos:
label: ChEFT_Output_Lepton
module: chiral_eft
process: chiral_eft-1
config:
input:
grid_variable: auto
global:
verbose: 2
use_lepton_eos: false
lepton_fraction: 0
check_eos_stability: true
use_beta_equilibrium: true
use_charge_neutrality: false
remove_negative_pressure: true
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
output_flavor_equilibration: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
particles:
use_tau: false
use_muon: true
use_electron: true
use_tau_neutrino: false
use_muon_neutrino: false
use_extra_particles: false
use_electron_neutrino: false
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
lepton_eos_parameters:
electron_cp_step: 0
temperature_step: 0
electron_cp_final: 0
temperature_final: 0
electron_cp_initial: 0
temperature_initial: 0
electron_neutrino_cp_step: 0
electron_neutrino_cp_final: 0
electron_neutrino_cp_initial: 0
flavor_equilibration_options:
reinterpolate_eos: false
baryon_density_points: 301
charge_fraction_points: 60
multidimensional_interpolator:
number_of_points: 100
use_multidimensional_interpolator: false
module: lepton
- name: crust_dft-1
config:
np: 4
set:
verbose: 0
Ye_grid_spec: 70,0.01*(i+1)
nB_grid_spec: 301,10^(i*0.04-12)*2.0
ext_guess: true
select_model: 470 738 0.5 13.0 62.4 32.8 0.9
output_format: CSV
generate_table: false
inputs:
EOS_table:
path: /public_data/eos_tables/du21/fid_450_2_6_22.o2
type: upload
uuid: a4f8be0f-57b6-4fe4-b460-3ef5720ead7b
label: EOS_table
checksum: e39eb584e5587b74a90c74f9648f8e5f
module: crust_dft
- name: lepton-2
pipes:
input_eos:
label: crust_dft_output
module: crust_dft
process: crust_dft-1
config:
input:
grid_variable: auto
global:
verbose: 2
use_lepton_eos: false
lepton_fraction: 0
check_eos_stability: true
use_beta_equilibrium: true
use_charge_neutrality: false
remove_negative_pressure: true
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
output_flavor_equilibration: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
particles:
use_tau: false
use_muon: true
use_electron: true
use_tau_neutrino: false
use_muon_neutrino: false
use_extra_particles: false
use_electron_neutrino: false
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
lepton_eos_parameters:
electron_cp_step: 0
temperature_step: 0
electron_cp_final: 0
temperature_final: 0
electron_cp_initial: 0
temperature_initial: 0
electron_neutrino_cp_step: 0
electron_neutrino_cp_final: 0
electron_neutrino_cp_initial: 0
flavor_equilibration_options:
reinterpolate_eos: false
baryon_density_points: 301
charge_fraction_points: 60
multidimensional_interpolator:
number_of_points: 100
use_multidimensional_interpolator: false
module: lepton
- name: cmf_solver-1
config:
physical_parameters:
f_K: 122
f_pi: 93.3000031
hbarc: 197.3269804
d_betaQCD: 0.0606060606
vacuum_masses:
mass0: 150
kaon_vacuum_mass: 498
pion_vacuum_mass: 139
Delta_vacuum_mass: 1232
Omega_vacuum_mass: 1691
Sigma_vacuum_mass: 1202
Lambda_vacuum_mass: 1115
nucleon_vacuum_mass: 937.242981
Sigma_star_vacuum_mass: 1385
quark_bare_masses:
up_quark_bare_mass: 5
down_quark_bare_mass: 5
strange_quark_bare_mass: 150
mean_field_vacuum_masses:
phi_mean_field_vacuum_mass: 1019
rho_mean_field_vacuum_mass: 761.062988
omega_mean_field_vacuum_mass: 780.562988
scalar_nucleon_couplings:
gN_zeta: 0.467039
alpha_DX: 0.350848362262
gN_sigma: -10.5668
vector_nucleon_couplings:
g_4: 38.9
gN_phi: 0
gN_rho: 4.03
gN_omega: 11.9
quark_to_fields_couplings:
gqd_phi: 0
gqd_rho: 0
gqs_phi: 0
gqs_rho: 0
gqu_phi: 0
gqu_rho: 0
gqd_zeta: 0
gqs_zeta: -3
gqu_zeta: 0
gqd_delta: 0
gqd_omega: 0
gqd_sigma: -3
gqs_delta: 0
gqs_omega: 0
gqs_sigma: 0
gqu_delta: 0
gqu_omega: 0
gqu_sigma: -3
gQ_Phi_order: 500
explicit_symmetry_breaking:
m_1: 0
m_2: 0
m_3D: 1.25
m_3H: 0
V_Delta: 0
scalar_mean_field_equation:
k_0: 2.3732188
k_1: 1.39999998
k_2: -5.54911336
k_3: -2.65241888
Phi_order_optical_potential:
T0: 200
a_1: -0.001443
a_3: -0.396
T0_gauge: 270
chi_mean_field_vacuum_value: 401.933763
baryon_to_Phi_field_coupling:
gB_Phi_order: 1500
computational_parameters:
options:
use_octet: true
use_quarks: true
use_decuplet: true
use_hyperons: true
use_Phi_order: true
use_ideal_gas: false
use_pure_glue: false
vector_potential: 4
baryon_mass_coupling: 1
use_default_vector_couplings: true
variables:
mean_fields_and_Phi_field:
phi0_end: 0
rho0_end: 1
phi0_step: 13.333
rho0_step: 10
zeta0_end: -40
delta0_end: 1
omega0_end: 100
phi0_begin: -40
rho0_begin: 0
sigma0_end: -10
zeta0_step: 23.333
delta0_step: 10
omega0_step: 33.333
sigma0_step: 30
zeta0_begin: -110
delta0_begin: 0
omega0_begin: 0
sigma0_begin: -100
Phi_order0_end: 0.9999
Phi_order0_step: 0.333
Phi_order0_begin: 0
chemical_optical_potentials:
muB_end: 1900
muQ_end: 10
muS_end: 10
muB_step: 2
muQ_step: 100
muS_step: 100
muB_begin: 900
muQ_begin: 0
muS_begin: 0
output_files:
output_debug: false
output_Lepton: true
output_format: CSV
output_particle_properties: true
output_flavor_equilibration: true
constant_fields:
use_constant_phi_mean_field: false
use_constant_rho_mean_field: false
use_constant_Phi_order_field: false
use_constant_zeta_mean_field: false
use_constant_delta_mean_field: false
use_constant_omega_mean_field: false
use_constant_sigma_mean_field: false
solution_resolution: 1.0e-15
maximum_for_residues: 0.0001
module: cmf_solver
- name: lepton-3
pipes:
input_eos:
label: CMF_for_Lepton_quarks_only
module: cmf_solver
process: cmf_solver-1
config:
input:
grid_variable: auto
global:
verbose: 2
use_lepton_eos: false
lepton_fraction: 0
check_eos_stability: true
use_beta_equilibrium: true
use_charge_neutrality: false
remove_negative_pressure: true
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
output_flavor_equilibration: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
particles:
use_tau: false
use_muon: true
use_electron: true
use_tau_neutrino: false
use_muon_neutrino: false
use_extra_particles: false
use_electron_neutrino: false
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
lepton_eos_parameters:
electron_cp_step: 0
temperature_step: 0
electron_cp_final: 0
temperature_final: 0
electron_cp_initial: 0
temperature_initial: 0
electron_neutrino_cp_step: 0
electron_neutrino_cp_final: 0
electron_neutrino_cp_initial: 0
flavor_equilibration_options:
reinterpolate_eos: false
baryon_density_points: 301
charge_fraction_points: 60
multidimensional_interpolator:
number_of_points: 100
use_multidimensional_interpolator: false
module: lepton
- name: lepton-4
pipes:
input_eos:
label: CMF_for_Lepton_baryons_only
module: cmf_solver
process: cmf_solver-1
config:
input:
grid_variable: auto
global:
verbose: 2
use_lepton_eos: false
lepton_fraction: 0
check_eos_stability: true
use_beta_equilibrium: true
use_charge_neutrality: false
remove_negative_pressure: true
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
output_flavor_equilibration: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
particles:
use_tau: false
use_muon: true
use_electron: true
use_tau_neutrino: false
use_muon_neutrino: false
use_extra_particles: false
use_electron_neutrino: false
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
lepton_eos_parameters:
electron_cp_step: 0
temperature_step: 0
electron_cp_final: 0
temperature_final: 0
electron_cp_initial: 0
temperature_initial: 0
electron_neutrino_cp_step: 0
electron_neutrino_cp_final: 0
electron_neutrino_cp_initial: 0
flavor_equilibration_options:
reinterpolate_eos: false
baryon_density_points: 301
charge_fraction_points: 60
multidimensional_interpolator:
number_of_points: 100
use_multidimensional_interpolator: false
module: lepton
- name: synthesis-1
pipes:
model1_BetaEq_eos:
label: eos_beta_equilibrium
module: lepton
process: lepton-1
model2_BetaEq_eos:
label: eos_beta_equilibrium
module: lepton
process: lepton-2
config:
global:
verbose: 0
synthesis_type: attach
check_eos_causality: false
check_eos_stability: false
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
mixed_phase:
number_of_points: 20
attach_method:
add_gap: false
attach_value: 1300
attach_variable: baryon_chemical_potential
attach_lower_value: 900
attach_upper_value: 1500
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
interpolation_method:
Gamma: 0
epsilon: 0.001
exp_power: 2
x_variable: baryon_density
y_variable: pressure
number_of_points: 150
end_interpolation: 0
start_interpolation: 0
x_variable_midpoint: 0
limit_from_endpoints: true
auto_profile_from_bounds: false
use_thermodynamic_consistency: true
module: synthesis
- name: synthesis-2
pipes:
model1_BetaEq_eos:
label: eos_beta_equilibrium
module: lepton
process: lepton-3
model2_BetaEq_eos:
label: eos_beta_equilibrium
module: lepton
process: lepton-4
config:
global:
verbose: 0
synthesis_type: attach
check_eos_causality: false
check_eos_stability: false
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
mixed_phase:
number_of_points: 20
attach_method:
add_gap: false
attach_value: 1300
attach_variable: baryon_chemical_potential
attach_lower_value: 900
attach_upper_value: 1500
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
interpolation_method:
Gamma: 0
epsilon: 0.001
exp_power: 2
x_variable: baryon_density
y_variable: pressure
number_of_points: 150
end_interpolation: 0
start_interpolation: 0
x_variable_midpoint: 0
limit_from_endpoints: true
auto_profile_from_bounds: false
use_thermodynamic_consistency: true
module: synthesis
- name: synthesis-3
pipes:
model1_BetaEq_eos:
label: eos
module: synthesis
process: synthesis-1
model2_BetaEq_eos:
label: eos
module: synthesis
process: synthesis-2
config:
global:
verbose: 0
synthesis_type: attach
check_eos_causality: false
check_eos_stability: false
output:
output_hdf5: false
output_compOSE: false
output_derivatives: false
output_particle_properties: false
solver:
method: levenbergMarquardt
linear_solver: denseQR
function_tolerance: 1.0e-10
gradient_tolerance: 1.0e-12
max_num_iterations: 1000
parameter_tolerance: 1.0e-10
convergence_threshold: 1.0e-07
use_nonmonotonic_steps: true
derivatives:
method: gsl
finite_difference:
precision: 1
step_size: 0.005
step_type: relative
mixed_phase:
number_of_points: 20
attach_method:
add_gap: false
attach_value: 1300
attach_variable: baryon_chemical_potential
attach_lower_value: 900
attach_upper_value: 1500
compOSE_options:
baryon_density_points: 301
baryon_density_spacing: linear
charge_fraction_points: 60
charge_fraction_spacing: linear
interpolation_method:
Gamma: 0
epsilon: 0.001
exp_power: 2
x_variable: baryon_density
y_variable: pressure
number_of_points: 150
end_interpolation: 0
start_interpolation: 0
x_variable_midpoint: 0
limit_from_endpoints: true
auto_profile_from_bounds: false
use_thermodynamic_consistency: true
module: synthesis
- name: qlimr-1
pipes:
eos:
label: eos
module: synthesis
process: synthesis-3
config:
inputs:
wb11_c: 0.1
A22_int: 1
R_start: 0.0004
eos_name: eos
final_epsilon: '.inf'
single_epsilon: 700
initial_epsilon: 250
resolution_in_NS_M: 0.05
resolution_in_NS_R: 0.2
options:
eps_sequence: true
output_format: csv
stable_branch: true
outputs:
compute_all: true
compute_love: false
compute_inertia: false
local_functions: false
compute_quadrupole: false
compute_mass_and_radius_correction: false
module: qlimr
components:
- name: gooey-chain
type: chain
sequence:
- chiral_eft-1
- lepton-1
- crust_dft-1
- lepton-2
- cmf_solver-1
- lepton-3
- lepton-4
- synthesis-1
- synthesis-2
- synthesis-3
- qlimr-1
I solved the problem I had with Crust-DFT. This is the workflow I tried to use now, here’s the failure message:
Error in module synthesis: Internal failure. Code: 400, Message: Error executing attach.Error reading EoS files. One or both files are empty. Exiting.
Also, when I try to read the beta_equilibrium_eos.csv I get a page saying Internal Server Error
EDIT: I ran some checks using mini workflows (ChEFT+lepton, Crust-DFT+lepton and CMF+lepton), and then downloaded the output files. The server error occurs for the beta_equilibrium_eos.csv file from the CMF+lepton mini workflow, even if there were no failure messages. I was able to open and download the beta_equilibrium_eos.csv file foe ChEFT+lepton and Crust-DFT+lepton without problems.
I ran the same workflow and reproduced your results.
The physics experts are away this week and next at a workshop or conference, unfortunately, but I have a suspicion that the error might be in the Lepton configuration. There is a generate_table: false in crust_dft-1 that may be omitting the production of the file you need. I’m trying it with that set to true.
Side note: You are using a chain structure, and while it is valid and should not be causing the failure, there is a more efficient structure that supports parallelism for faster execution. See this example for a pattern to follow.
This is a bug in the CE we should fix. It will look better for our open source project if
you create the issue instead of me. If you prefer not to do that, no worries.
Following the data flow from your pipe definitions, I constructed an optimized workflow structure to minimize runtime. This fails much quicker than your linear workflow
components:
- type: chain
name: chain-chiral_eft
sequence:
- chiral_eft-1
- lepton-1
- type: chain
name: chain-crust_dft
sequence:
- crust_dft-1
- lepton-2
- type: group
name: group-cmf_solver-leptons
group:
- lepton-3
- lepton-4
- type: chain
name: chain-cmf_solver-leptons-synthesis
sequence:
- cmf_solver-1
- group-cmf_solver-leptons
- synthesis-2
- type: group
name: group-chiral-crust-leptons
group:
- chain-chiral_eft
- chain-crust_dft
- type: chain
name: chain-chiral-crust-leptons-synthesis
sequence:
- group-chiral-crust-leptons
- synthesis-1
- type: group
name: group-eos-synthesis
group:
- chain-chiral-crust-leptons-synthesis
- chain-cmf_solver-leptons-synthesis
- type: chain
name: chain-synthesis-qlimr
sequence:
- group-eos-synthesis
- synthesis-3
- qlimr-1
Aside from parallelism, another benefit of using a workflow structure like this is that you can easily comment out components when debugging. For example, I commented out everything except the chiral_eft-lepton chain for one job, and then launched a second job including only the crust_dft-lepton chain, and a third job with the cmf-lepton-synthesis chain. These three jobs are running in parallel making it faster to determine exactly where failures occur, and hopefully make it clearly why.
The lepton module logs from the chiral_eft-lepton chain workflow show messages indicating convergence:
"Starting equilibrium calculation at",
"T, nB= 0 MeV, 0.256fm-3",
"Initial guess: -40.1751 1",
"Ceres Solver Report: Iterations: 20, Initial cost: 4.955574e-01, Final cost: 7.138277e-21, Termination: CONVERGENCE",
"",
"Convergence.",
The lepton module logs for the failed cmf-leptons workflow show failure to converge:
"Starting equilibrium calculation at",
"T, nB= 0 MeV, 1.49869fm-3",
"Initial guess: 0 1",
"Ceres Solver Report: Iterations: 0, Initial cost: -1.000000e+00, Final cost: -1.000000e+00, Termination: FAILURE",
"",
"No convergence.",
CrustDFT is taking forever so I don’t know what will happen to its lepton calculation.
Thank you for the advice.
I just created the issue, I’m waiting for it to be fixed.
Thank you again.
Is it possible to see some results for neutron stars observables calculated with MUSES CE? Some test results, articles o whatever, since it’s now impossible to generate results by myself because of the Internal Server Error for lepton module for CMF
Federico, I’m happy it worked for Crust-DFT and chiral EFT. I believe your CMF run is failing because you do not have a sufficient grid in the Q-direction to compute beta-equilibrium. Could you try again with
chemical_optical_potentials:
muB_end: 1900
muQ_end: 0
muB_step: 5
muQ_step: 2
muB_begin: 950
muQ_begin: -400
Let me know if that works
You can see some results from the CE in this paper.
With the parameters you suggested me I get this error:
Error in module lepton: Internal failure. Code: 406, Message: Error calculating Beta Equilibrium. The interpolated EoS is not stable. Exiting.
Well, that’s an improvement . Your current issue is that Lepton is computing beta-equilibrium at fixed muB, and at low muB, varying muQ might give you a stable phase either on the low or the high nB range of the liquid-gas phase transition.
What this means is that the root solver is looking for one equilibrium point, but because we fed the interpolator two phases, you don’t know which one it’ll pick as the solution at each muB. This can give you an unstable EOS.
One way around is to compute the equilibrium in density, which you can do by setting in the Lepton config:
multidimensional_interpolator:
use_multidimensional_interpolator: true
Or you can start at a higher muB_begin.
Please let me know if this fails, as this is the approach I have been taking to bypass the issue.
I made it work, thank you.
Now the next problem: QLIMR module.
I uploaded the eos.csv obtained by synthesis module, merging all the pieces together. Now I’m getting this message:
Error in module qlimr: Internal failure. Code: 500, Message: Internal error
I already tried to change some parameters but I’m not solving it.
Also, while checking all the output files, I noticed that there are columns that are zero, Temperature included: What precautions should I take to obtain the temperature profile?
@federico.nola when you encounter a vague error like “Code: 500, Message: Internal error”, look through the execution logs to find more helpful information. For example, in your job 48af3cbe-f551-40ed-8e6a-fd8c8ac51e12 (which I can only see because I am an admin; most of the community members who can help you will not have access to that), the QLIMR log.json file shows:
[
"Job \"48af3cbe-f551-40ed-8e6a-fd8c8ac51e12\": Celery task \"d6fe52d9-8aba-46ad-ac90-4ee347b2dafb\" triggered for task \"qlimr-1\" running module \"qlimr\".",
"\u001b[1;31mError: \u001b[0mThe provided EoS is not monotonically increasing, and execution has been stopped.",
"",
"Error: "
]
Obnoxious JSON formatting aside, it gives a clue as to the cause: “The provided EoS is not monotonically increasing, and execution has been stopped.”
(This should be handled better by the QLIMR module, which should catch this error and ensure the message is returned to the CE so that you see it instead of the vauge 500 error: @carlosc7)
Side note: In this scenario, where you have used one (often expensive) workflow to generate some data, like the eos.csv file in your case, and then you want to run various workflows that use this as their input, you don’t need to download and upload the file. Instead, you can save the job that generated the EoS and then directly reference its output in subsequent workflows; for example:
...
- name: qlimr-1
module: qlimr
inputs:
input_eos:
type: job
uuid: 57388fe3-6932-4b45-b1d0-63463cc828ac
path: /cmf/opt/output/CMF_output_for_Lepton_baryons.csv
config:
...
Marking a job saved or public requires this endpoint retroactively:
PATCH /api/v0/ce/job/{id}/
or you can proactively flag it to be saved upon completion using the workflow.options.save_job boolean in the job creation API POST /api/v0/ce/job/.
(@mrpelicer this is not documented well if at all, by the way. The difference needs to be articulated between setting “saved” to true upon job creation and the “options” setting it to “saved” only after it completes successfully. Update: I made a code issue to track the task.)
To complement Andrew’s answer, it is indeed quite hard to ensure that a matched EOS is stable and monotonically increasing. This is exactly what we explored in this paper, which you should be able to reproduce using these notebooks.
But from your config, this part:
config:
global:
verbose: 0
synthesis_type: attach
check_eos_causality: false
check_eos_stability: false
attach_method:
add_gap: false
attach_value: 1300
attach_variable: baryon_chemical_potential
attach_lower_value: 900
attach_upper_value: 1500
tells me you are attaching the EOSs at muB=1300 instead of smoothly matching them. This is quite a high muB, so if the crust model has a higher pressure than the core model, it will lead to an unstable EOS - which if I remember correctly, is the case with CMF and crust-DFT.
I’d recommend trying to attach the models using
attach_value: 0.08
attach_variable: baryon_density
or adding a small gap between the two EOS to minimize the changes of the matched EOS being unstable.
Still getting the same error, is it possible that it’s because of the CMF?
I suspect that because yesterday I tried the QLIMR with ChEFT+Crust-DFT and it worked
Yes, matching the EOS is very model dependent. I suggest you plot the EOS and check if dP/de < 0 at any point. That’ll tell you if the issue is with the CMF EOS itself or with the way you matched them.
